کلید محافظ جان زیمنس RCD مخفف عبارت ( Residual Current Device) و یا RCCB مخفف عبارت (Residual Current Circuit Breaker) شامل کلیدهایی می شود که با تشخیص نشت جریان، مدار را در کسری از ثانیه قطع کرده و مانع از صدمات جانی ناشی از نشت جریان می گردد.
با مقایسه جریان فاز و نول (رفت و برگشت مدار) در صورت مشاهده اختلاف سریعا مدار را قطع می کند . لازم به ذکر است باید یک نکته مهم و اساسی را در نظر داشته باشید:
در مدارهای تک فاز جریان رفت و برگشت بایدیکسان و برابر باشد و اختلاف جریان فاز و نول ناشی از نشت جریان بر اثر اتصال هادی فاز با زمین اتفاق خواهد افتاد که جریان به جای عبور از سیم نول ، از طریق زمین به منبع باز می گردد . جریان نشتی ممکن است از راه بدن فردی که با زمین تماس دارد و تصادفاً دستش با قسمت برقدار مدار تماس پیدا کرده است نیز بوجود آید.
جهت ثبت سفارش ابتدا طبق مشخصات کد فنی محصول را انتخاب و سپس جهت استعلام و همچنین مشاوره خرید با شماره ۰۲۱۳۶۶۱۶۹۹۱ تماس حاصل فرمایید.
| Item | PartNumber | Description |
|---|---|---|
| 1 | 5SV5312-6 | Residual current operated circuit breaker, 2-pole, Type A, In: 25A, 30mA, Un AC: 230V Residential |
| 2 | 5SV5314-6 | Residual current operated circuit breaker, 2-pole, Type A, In: 40A, 30mA, Un AC: 230V Residential |
| 3 | 5SV5316-6 | Residual current operated circuit breaker, 2-pole, Type A, In: 63A, 30mA, Un AC: 230V Residential |
| 4 | 5SV3317-6 | Residual current operated circuit breaker, 2-pole, type A, In: 80 A, 30 mA, Un AC: 230 V |
| 5 | 5SV5612-6 | Residual current operated circuit breaker, 2-pole, Type A, In: 25A, 300mA, Un AC: 230V Residential |
| 6 | 5SV5614-6 | Residual current operated circuit breaker, 2-pole, Type A, In: 40A, 300mA, Un AC: 230V Residential |
| 7 | 5SV5616-6 | Residual current operated circuit breaker, 2-pole, Type A, In: 63A, 300mA, Un AC: 230V Residential |
| 8 | 5SV3617-6 | Residual current operated circuit breaker, 2-pole, type A, In: 80 A, 300 mA, Un AC: 230 V |
| 9 | 5SV5342-6 | Residual current operated circuit breaker, 4-pole, Type A, In: 25A, 30mA, Un AC: 400V Residential |
| 10 | 5SV5344-6 | Residual current operated circuit breaker, 4-pole, Type A, In: 40A, 30mA, Un AC: 400V Residential |
| 11 | 5SV5346-6 | Residual current operated circuit breaker, 4-pole, Type A, In: 63A, 30mA, Un AC: 400V Residential |
| 12 | 5SV3347-6 | Residual current operated circuit breaker, 4-pole, type A, In: 80 A, 30 mA, Un AC: 400 V |
| 13 | 5SM3348-6 | Residual current operated circuit breaker, 4-pole, type A, In: 100 A, 30 mA, Un AC: 400 V |
| 14 | 5SM3345-6 | Residual current operated circuit breaker, 4-pole, type A, In: 125 A, 30 mA, Un AC: 400 V |
| 15 | 5SV5642-6 | Residual current operated circuit breaker, 4-pole, Type A, In: 25A, 300mA, Un AC: 400V Residential |
| 16 | 5SV5644-6 | Residual current operated circuit breaker, 4-pole, Type A, In: 40A, 300mA, Un AC: 400V Residential |
| 17 | 5SV5646-6 | Residual current operated circuit breaker, 4-pole, Type A, In: 63A, 300mA, Un AC: 400V Residential |
| 18 | 5SV3647-6 | Residual current operated circuit breaker, 4-pole, type A, In: 80 A, 300 mA, Un AC: 400 V |
| 19 | 5SM3648-6 | Residual current operated circuit breaker, 4-pole, type A, In: 100 A, 300 mA, Un AC: 400 V |
| 20 | 5SM3645-6 | Residual current operated circuit breaker, 4-pole, type A, In: 125 A, 300 mA, Un AC: 400 V |
| 21 | 5SV4111-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 16 A, 10 mA, Un AC: 230 V |
| 22 | 5SV4311-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 16 A, 30 mA, Un AC: 230 V |
| 23 | 5SV4312-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 25 A, 30 mA, Un AC: 230 V |
| 24 | 5SV4314-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 40 A, 30 mA, Un AC: 230 V |
| 25 | 5SV4316-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 63 A, 30 mA, Un AC: 230 V |
| 26 | 5SV4317-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 80 A, 30 mA, Un AC: 230 V |
| 27 | 5SV4612-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 25 A, 300 mA, Un AC: 230 V |
| 28 | 5SV4614-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 40 A, 300 mA, Un AC: 230 V |
| 29 | 5SV4616-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 63 A, 300 mA, Un AC: 230 V |
| 30 | 5SV4617-0 | Residual current operated circuit breaker, 2-pole, Type AC, In: 80 A, 300 mA, Un AC: 230 V |
| 31 | 5SV4342-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 25 A, 30 mA, Un AC: 400 V |
| 32 | 5SV4344-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 40 A, 30 mA, Un AC: 400 V |
| 33 | 5SV4346-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 63 A, 30 mA, Un AC: 400 V |
| 34 | 5SV4347-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 80 A, 30 mA, Un AC: 400 V |
| 35 | 5SM3348-0 | Residual current operated circuit breaker, 4-pole, type AC, In: 100 A, 30 mA, Un AC: 400 V |
| 36 | 5SM3345-0 | Residual current operated circuit breaker, 4-pole, type AC, In: 125 A, 30 mA, Un AC: 400 V |
| 37 | 5SV4642-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 25 A, 300 mA, Un AC: 400 V |
| 38 | 5SV4644-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 40 A, 300 mA, Un AC: 400 V |
| 39 | 5SV4646-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 63 A, 300 mA, Un AC: 400 V |
| 40 | 5SV4647-0 | Residual current operated circuit breaker, 4-pole, Type AC, In: 80 A, 300 mA, Un AC: 400 V |
| 41 | 5SM3648-0 | Residual current operated circuit breaker, 4-pole, type AC, In: 100 A, 300 mA, Un AC: 400 V |
| 42 | 5SM3645-0 | Residual current operated circuit breaker, 4-pole, type AC, In: 125 A, 300 mA, Un AC: 400 V |
| 43 | 5SV3612-8 | Residual current operated circuit breaker, 2-pole, type A, selective, In: 25 A, 300 mA, Un AC: 230 V |
| 44 | 5SV3614-8 | Residual current operated circuit breaker, 2-pole, type A, selective, In: 40 A, 300 mA, Un AC: 230 V |
| 45 | 5SV3616-8 | Residual current operated circuit breaker, 2-pole, type A, selective, In: 63 A, 300 mA, Un AC: 230 V |
| 46 | 5SV3617-8 | Residual current operated circuit breaker, 2-pole, type A, selective, In: 80 A, 300 mA, Un AC: 230 V |
| 47 | 5SV3642-8 | Residual current operated circuit breaker, 4-pole, type A, selective, In: 25 A, 300 mA, Un AC: 400 V |
| 48 | 5SV3644-8 | Residual current operated circuit breaker, 4-pole, type A, selective, In: 40 A, 300 mA, Un AC: 400 V |
| 49 | 5SV3646-8 | Residual current operated circuit breaker, 4-pole, type A, selective, In: 63 A, 300 mA, Un AC: 400 V |
| 50 | 5SV3647-8 | Residual current operated circuit breaker, 4-pole, type A, selective, In: 80 A, 300 mA, Un AC: 400 V |
| 51 | 5SV3322-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 25 A, 30 mA, Un AC: 230 V |
| 52 | 5SV3324-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 40 A, 30 mA, Un AC: 230 V |
| 53 | 5SV3326-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 63 A, 30 mA, Un AC: 230 V |
| 54 | 5SV3621-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 16 A, 300 mA, Un AC: 230 V |
| 55 | 5SV3622-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 25 A, 300 mA, Un AC: 230 V |
| 56 | 5SV3624-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 40 A, 300 mA, Un AC: 230 V |
| 57 | 5SV3626-4 | Residual current operated circuit breaker, 2-pole, Type B, short-time delayed, In: 63 A, 300 mA, Un AC: 230 V |

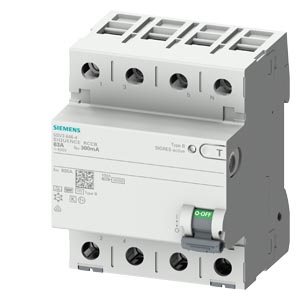

| 58 | 5SV3342-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 25 A, 30 mA, Un AC: 400 V |
| 59 | 5SV3344-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 40 A, 30 mA, Un AC: 400 V |
| 60 | 5SV3346-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 63 A, 30 mA, Un AC: 400 V |
| 61 | 5SV3347-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 80 A, 30 mA, Un AC: 400 V |
| 62 | 5SV3642-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 25 A, 300 mA, Un AC: 400 V |
| 63 | 5SV3644-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 40 A, 300 mA, Un AC: 400 V |
| 64 | 5SV3646-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 63 A, 300 mA, Un AC: 400 V |
| 65 | 5SV3647-4 | Residual current operated circuit breaker, 4-pole, Type B, short-time delayed, In: 80 A, 300 mA, Un AC: 400 V |

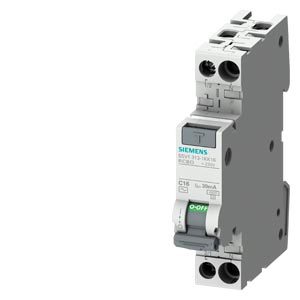

| 66 | 5SV1313-7KK02 | RCBO compact 1P+N 4.5 kA type A 30 mA C2 |
| 67 | 5SV1313-7KK04 | RCBO compact 1P+N 4.5 kA type A 30 mA C4 |
| 68 | 5SV1313-7KK06 | RCBO compact 1P+N 4.5 kA type A 30 mA C6 |
| 69 | 5SV1313-7KK10 | RCBO compact 1P+N 4.5 kA type A 30 mA C10 |
| 70 | 5SV1313-7KK16 | RCBO compact 1P+N 4.5 kA type A 30 mA C16 |
| 71 | 5SV6016-7KK06 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 6A Compact (1MW) |
| 72 | 5SV6016-7KK10 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 10A Compact (1MW) |
| 73 | 5SV6016-7KK16 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 16A Compact (1MW) |
| 74 | 5SV6016-7KK20 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 20A Compact (1MW) |
| 75 | 5SV6016-7KK25 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 25A Compact (1MW) |
| 76 | 5SV6016-7KK32 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 32A Compact (1MW) |
| 77 | 5SV6016-7KK40 | AFDD-MCB-Combination 230V, 6kA, 1+N, C, 40A Compact (1MW) |
